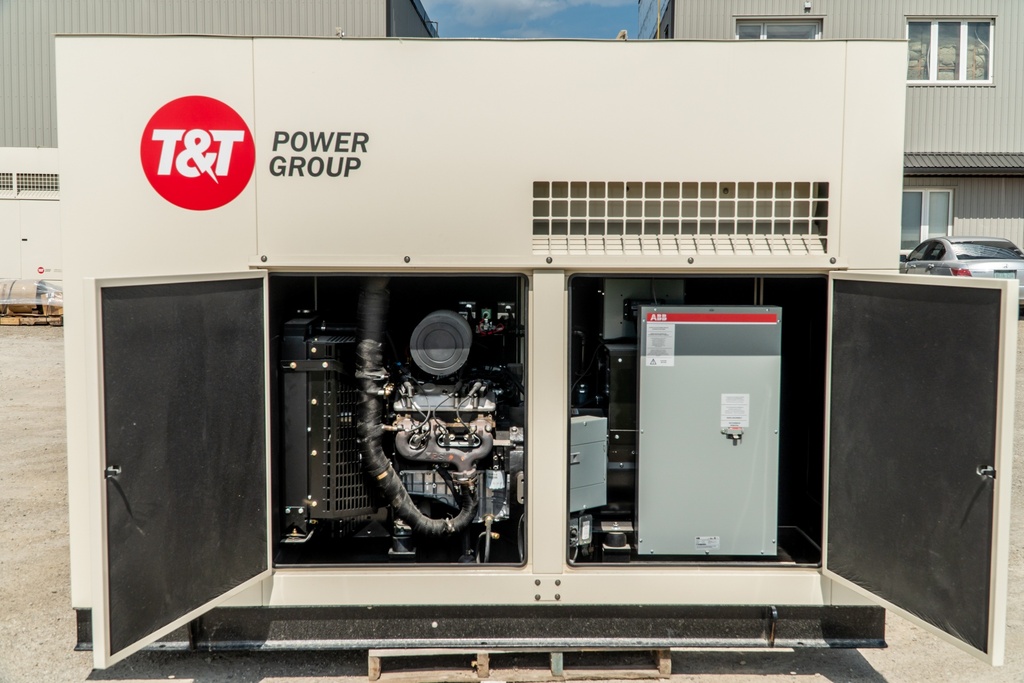

T&T Power Group's Prime Power Duty 70 kW Natural Gas Generator features a reliable PSI engine and a user-friendly Deep Sea 7310 controller. This 347/600V three phase version is perfect for heavy duty industrial and commercial prime power applications. The specifications included here are a sample only and may differ from the final shop drawing package.
About T&T Power Group Generators
T&T Power Group is proudly 100% Canadian owned and operated. Our generators are manufactured in Canada from foreign and domestic parts, and are available with our industry-leading 10-Year Warranty. We offer standard designs as well as custom generators built to your spec.
About Prime Power Ratings
The Prime Power rating is the maximum power available from the generator set to energize a variable electrical load profile for an unlimited number of hours per year, with the following limitation per the ISO 8528-1 Standard:
- Load factor not to exceed 70% of the Prime rating over any 24-hour period
| Condition | New |
| Power Rating | Prime |
| Voltage (AC) | 347/600 |
| Phase Output | 3 |
| Electrical Output (kWe) | 72 |
| KVA | 90 |
| Amps | 87 |
| Power Factor | 0.8 |
| Engine Make | PSI |
| Engine Model | 5.7L Turbo |
| Fuel | Natural Gas |
| Fuel Consumption (btu/hr) | - - |
| Controller | Deep Sea 7310 |
| Enclosure Type | Weatherproof, Sound-Attenuated |
| Sound Rating (dB @ 7m) | 73 |
| Length (mm) | 2844 |
| Width (mm) | 1156 |
| Height (mm) | 2134 |
| Weight (kg) | 1942 |
| Manufacturer | T&T Power Group |
| Product Series | GNX |
