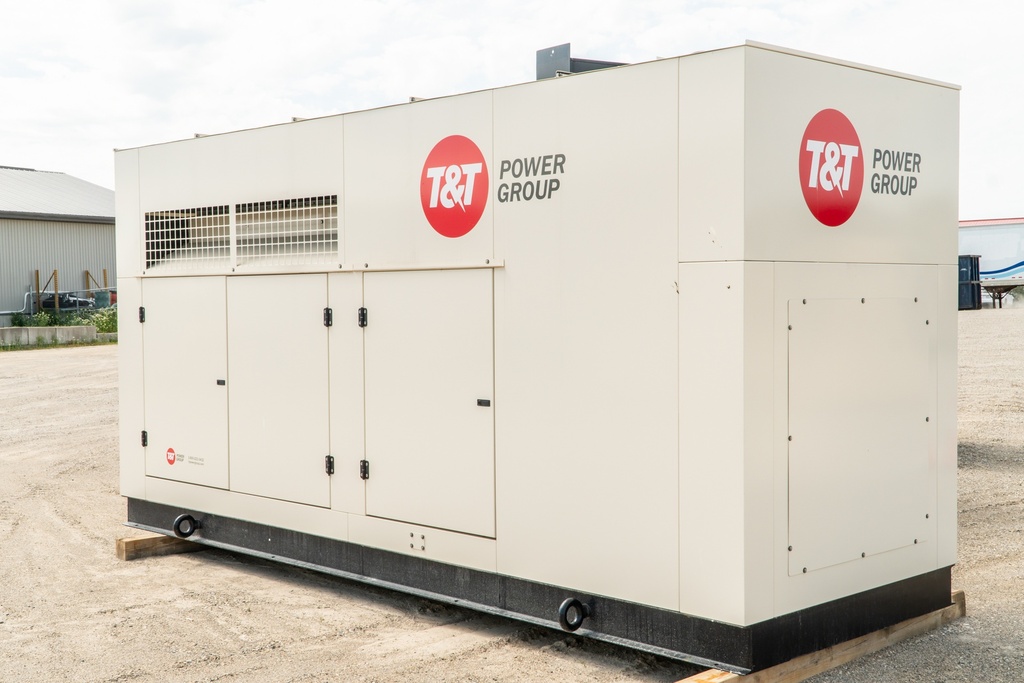

T&T Power Group's Standby Duty 270 kW Natural Gas Generator features a reliable Zenith engine and a user-friendly Deep Sea 7310 controller. This 120/208V three phase version is perfect for industrial and commercial emergency standby power applications. The specifications included here are a sample only and may differ from the final shop drawing package.
About T&T Power Group Generators
T&T Power Group is proudly 100% Canadian owned and operated. Our generators are manufactured in Canada from foreign and domestic parts, and are available with our industry-leading 10-Year Warranty. We offer standard designs as well as custom generators built to your spec.
About Standby Power Ratings
Emergency Standby Power (ESP) is the maximum power available from the generator set to energize a variable electrical load profile, with the following limitations per the ISO 8528-1 Standard:
- Total annual runtime not to exceed 200 hours
- Load factor not to exceed 70% of the ESP rating over any 24-hour period
| Condition | New |
| Power Rating | Standby |
| Voltage (AC) | 120/208 |
| Phase Output | 3 |
| Electrical Output (kWe) | 270 |
| KVA | 338 |
| Amps | 937.9233681870288 |
| Power Factor | 0.8 |
| Engine Make | Zenith |
| Engine Model | 6120TA 12L Turbocharged |
| Fuel | Natural Gas |
| Fuel Consumption (btu/hr) | 2607540 |
| Controller | Deep Sea 7310 |
| Enclosure Type | Weatherproof, Sound-Attenuated |
| Sound Rating (dB @ 7m) | 74 |
| Length (mm) | 5194 |
| Width (mm) | 1778 |
| Height (mm) | 2527 |
| Weight (kg) | 5039 |
| Manufacturer | T&T Power Group |
| Product Series | GNX |
