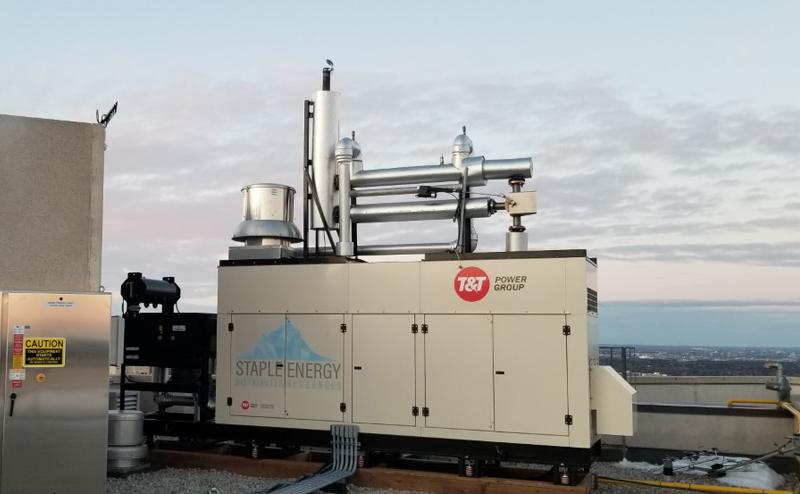

T&T Power Group's 140 kW Combined Heat and Power (CHP) generator package features a reliable Rich Burn MAN Energy Solutions Gas Engine, and can be configured to run on most gaseous fuels including natural gas, renewable natural gas, propane or biogas. This cogeneration system is ideal for greenhouse, healthcare, industrial, and other applications with a significant thermal load.
This generator set is available with a continuous power rating and heat recovery package. This product is highly customizable and the specifications included here are a sample only, and may differ from the final shop drawing package.
About T&T Power Group Generators
T&T Power Group is proudly 100% Canadian owned and operated. Our generators are manufactured in Canada from foreign and domestic parts, and are available with our industry-leading 10-Year Warranty. We offer standard designs as well as custom generators built to your spec.
About Combined Heat & Power Generators
Whereas conventional power generators convert a fuel into electricity only, Combined Heat and Power Generators (CHP) generate both electricity and heat from a single fuel source. Heat exchangers recover heat from coolant and exhaust systems that would otherwise be wasted and convert the thermal energy into hot water or steam. A well designed CHP system can increase overall efficiency from less than 40% to over 90%, provided there is a use for the thermal energy available onsite.
About Continuous Power Ratings
The Continuous Power rating is the maximum power available from the generator set to energize a constant electrical load profile for an unlimited number of hours per year, with the following limitation per the ISO 8528-1 Standard:
- Load factor not to exceed 100% of the Continuous Power Rating
| Condition | New |
| Power Rating | Continuous |
| Voltage (AC) | 347/600 |
| Electrical Output (kWe) | 140 |
| KVA | 175 |
| Amps | 168.59344894026975 |
| Power Factor | 0.8 |
| Engine Make | MAN Energy Solutions |
| Engine Model | MAN E2876 E312 |
| Fuel | Natural Gas |
| Fuel Consumption (btu/hr) | - - |
| Controller | Deap Sea 7310 |
| Enclosure Type | Weatherproof, Sound-Attenuated Enclosure |
| Sound Rating (dB @ 7m) | 75 |
| Length (mm) | 6100 |
| Width (mm) | 1350 |
| Height (mm) | 2365 |
| Weight (kg) | 5670 |
| Manufacturer | T&T Power Group |
| Product Series | CHP |
| Combustion Type | Rich Burn |
| Emissions Control | 3-Way catalyst |
| Emissions Level | NOx: <6500 mg/Nm^3, CO: <4250 mg/Nm^3 |
| Heat Recovery Package | Included |
| SEO Continuous Rating | 140 |
