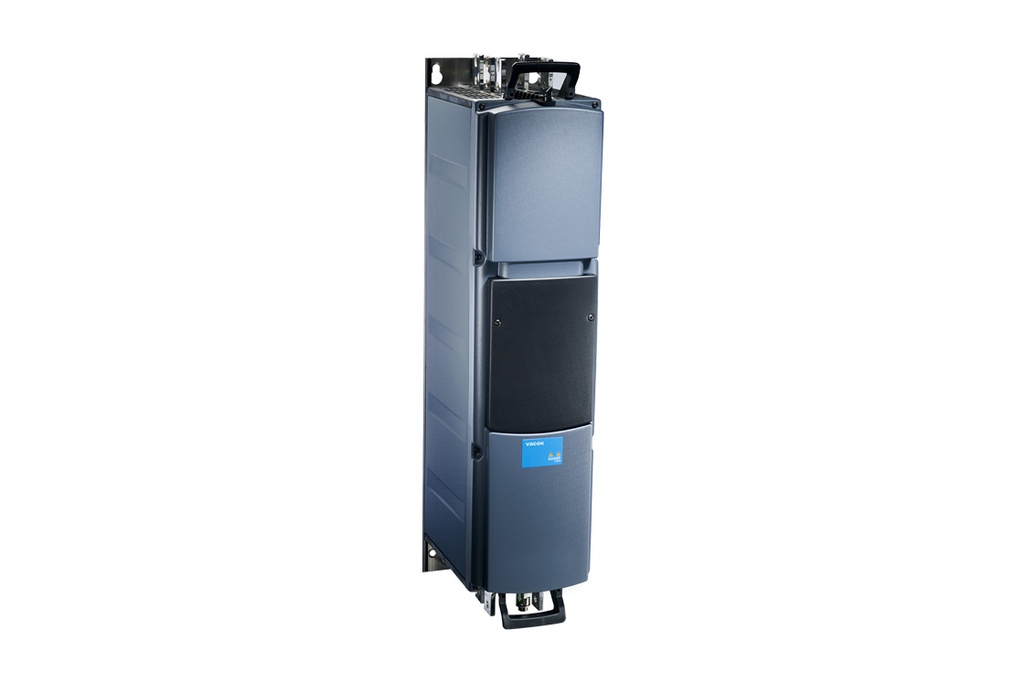

With one of the best power/size ratios, VACON® NXP Liquid Cooled drives are ideal for applications where space is at a premium or air cooling is difficult. Available with up to ten years DrivePro® extended warranty.
Heavy industries with harsh operating conditions, such as in marine, offshore and mining environments benefit from the drive’s compact design and robust reliability.
T&T Power Group sells and services Danfoss drives across Canada, with 24/7 expert support just a phone call or email away.
| Input Voltage | 230 |
| Phase Output | 3 |
| Continuous Current (Amps) | 261 |
| Horsepower | 100 |
| Frame Size | FR9 |
| Enclosure Rating | IP-54 NEMA 12 |
| Width (mm) | 480 |
| Depth (mm) | 362 |
| Height (mm) | 1150 |
| Weight (kg) | 146 |
| Manufacturer | Danfoss |
| Product Series | VACON NXP |
| Order Number | 136H6385 |
| Enclosure Code | 5 |
| Enclosure Rating (short) | IP-54 |
